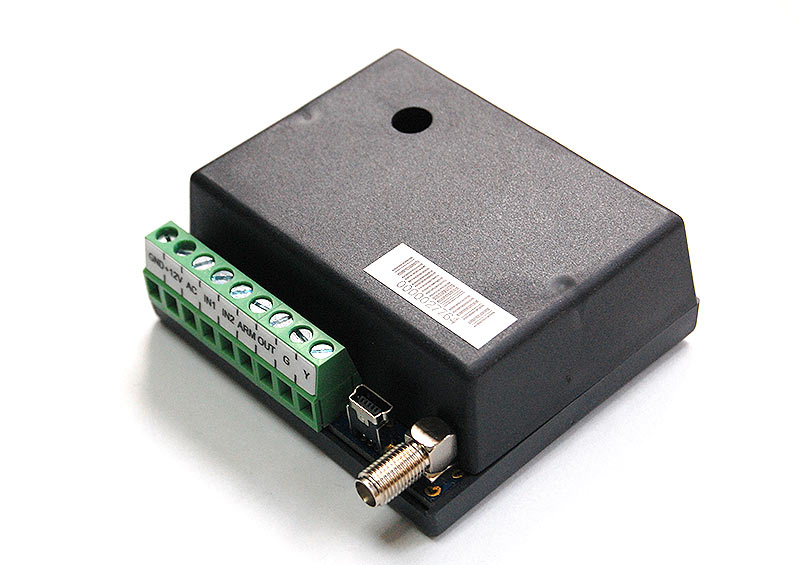

DSSM LT GPRS communicator for security systems and monitoring

ORDER NOW

Two-way GSM/GPRS communication with monitoring centre

Non-volatile memory for storing unsent events

Operates through GPRS on all mobile operators

 DSSM-LT-GPRS-comunicator

3 easily programmable digital inputs

1 easily controllable digital output

Serial input for integration with different security alarm systems such as TELETEK, PARADOX, DSC


Description:

DSSM GPRS is a top tier communication device for security and monitoring. Its main purpose is to securely send all events from an alarm system to a monitoring centre with a 100% success rate and 0% data loss.


Functionality:

  • The device is engineered to have a serial input, making it compatible with different alarm systems from various manufacturers including – TELETEK, PARADOX, DSC and others.
  • Non-volatile internal memory for storing unsent events.
  • All events generated by the alarm system are transmitted in real-time, instantaneously when they occur.
  • Built-in clock, operating in real-time.
  • Two-way communication with monitoring centre. The events are stored in the non-volatile internal memory and deleted only when they are successfully submitted to the monitoring centre and a confirmation of the action being completed is received.
  • All unsent events are stored in the device memory even after resetting or cutting the power supply and can't be deleted until they are being transmitted.
  • Ability for configuration and setup through:

- USB cable
- Remotely through TCP/IP channel
- By an SMS from an authorised number

  • Remote firmware update.
  • 3 easily programmable digital inputs.
  • Serial number for connecting to different security alarm systems.
  • 1 easily controllable digital outputs which can be activated remotely. For example - blocking an alarm system due to unpaid bills to the security provider.
  • Ability to work with balanced inputs.
  • Shows GSM signal quality in real-time with the goal of choosing the best location for installation.
  • Tracks and transmits the status of external power supply of an alarm system.

Technical Specifications:

  • Power Supply:

9 ÷ 30VDC

  • Digital inputs:

3 inputs which can be programmed to be activated by:
- negative (-)
- with negative, combined with balanced resistors

  • Digital outputs:

1 output (open collector, IMAX = 300mA)

  • AC voltage input:

15VAC (max)

  • Communication with alarm system panel:

Selected depending on the type of the system

  • GSM module:

900/1800MHz

  • Event buffer memory:

40 events

  • "Standby" mode power consumption:

15mA

  • Transmitting power consumption:

130mA

  • Operational temperature:

-30˚C ÷ +75˚C

  • Weight:

100g

  • Dimensions:

70mm х 60mm

  • Certificates:

CE Certificate


Included in the package

  • 1 x DSSM LT in a plastic cover
  • 1 x GSM antenna with 3 m cable

Downloads

DSSM LT Specification Datasheet
