SMART GUARD KEYPAD

ORDER NOW

BE SMART STAY SECURE WITH SMART GUARD!

Security and Smart Home ALL IN ONE

Next Generation PRO Intruder Alarm System

Complete access control at very high technological level

Lots of inovative functionality

You get ALL IN ONЕ

1 wired input split into 2 logical zones

 1 PGM output - supports Smart Door Control (SDC)

Built-in proximity reader

Touch-sensitive keypad with predefined buttons for basic operations





KEYPAD-security-systems

Built-in adjustable LED backlight

Built-in buzzer for audible alarm with
adjustable volume levels

Built-in tamper for additional security



Product video:


Description

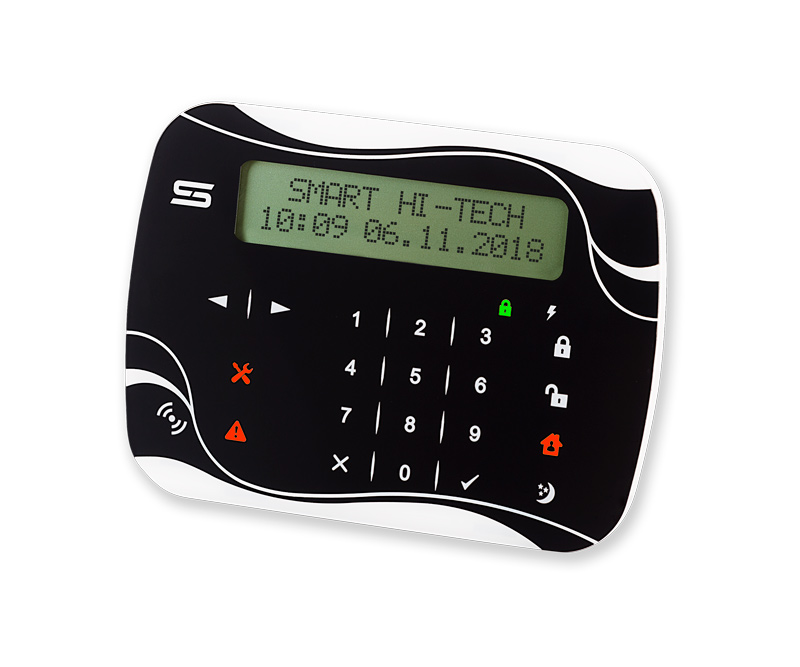

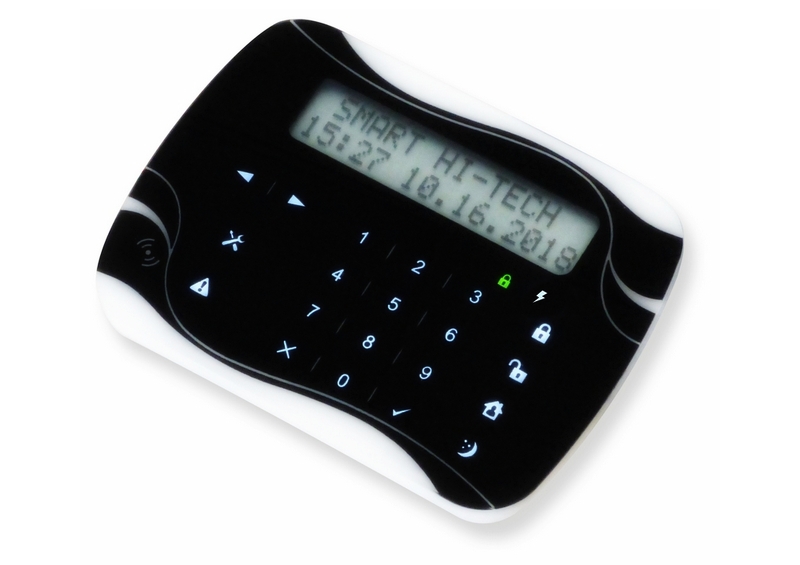

Smart Guard Keypad SG KBD is a stylish and elegant keyboard, perfectly fitting every home, office, store or other production or commercial sites. The keyboard includes a two-line screen and built-in LED lighting. The user is able to easily modify the intensity and brightness of the backlight. All buttons are touch-sensitive and the panel of the keyboard has a built-in proximity card reader for access control. Detailed information regarding system state, triggered zones, technical issues, alarm events, and different Arm modes can be found on the screen. The keyboard can be connected only to SMART GUARD alarm systems. The keyboard panel has one splittable zone and one PGM output which can control directly an electromagnetic lock in normal or Smart Door Control (SDC) mode.



Technical Parameters

  • Power Supply:

9 ÷ 18VDC

  • Power Consumption:

min 20mА, max 80mA

  • Button type:

Сapacitive

  • Zones:

1 zone

  • PGM:

1 PGM, 2A max

  • Built-in RFID reader:

Yes, works with RFID cards on 125kHz

  • Built-in tamper:

Yes

  • Operational Temperature:

from -10˚C to+50˚C

  • Dimensions:

158 mm x 117 mm x 23 mm


Purpose of Use

SMART HOME

SMART GUARD is a next generation alarm system, combining reliable security and “SMART HOME” automation, allowing the user to easily control different electric and electronic appliances and other external systems through different mobile devices. SMART GUARD has the ability to ARM according to previously set timebased schedules. Implemented Smart Door Control for further automation of electromagnetic locks, without additional power supply modules, reducing time and costs. This makes the SG one of the most innovative, dependable and secure alarm systems on the market!




CLOUD PLATFORM

SMART GUARD is easily manageable through all mobile platforms. For complete and reliable event monitoring, the system supports simultaneous communication through GSM, Wi-Fi and LAN networks. The built-in GSM communicator has the full functionality of the SMART DIALER with the ability to alert and notify about events via call and SMS to or from specified numbers. The module further provides the option to view event and alarm history from the keypad, PC, CLOUD SMART GUARD and other platforms and devices.




DATA ENCRYPTION

SMART GUARD has a built-in algorithm for additional high level code protection, ensuring communication encryption for remote access. In the event of an attempt to breach the system, we’ve engineered a highly intelligent software with automatic counteractive measures. By implementing two-way encryption and removing the option to delete events, the system guarantees advanced data security and integrity. It is impossible to manipulate or delete information, without it being sent to the monitoring centre.




REMOTE SUPPORT

SMART GUARD is a one of a kind system, supporting automatic and remote software updates over different devices such as the panel, keypads, proximity readers, expanders and others. In the event of connection loss, the software updates can resume from their last point of progress resulting in saving data and avoiding dangerous loops. Other than on site, through the keypads or/and PC, it is possible to remotely support and program the system and its components. The innovative SG PIR sensor allows the supporting teams to remotely view its current state, troubleshoot and modify the settings.
