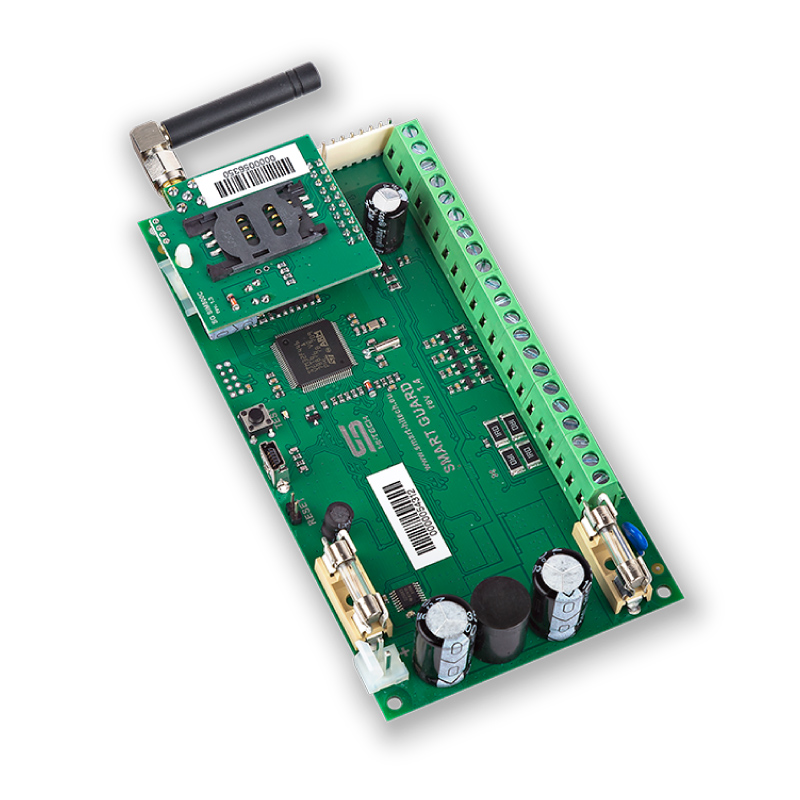

SMART GUARD PANEL
BE SMART STAY SECURE WITH SMART GUARD!
Security and Smart Home ALL IN ONE
Next Generation PRO Intruder Alarm System
Complete access control at very high technological level
Lots of inovative functionality
✔ 8 wired inputs split into 16 logical zones
✔ Ability to choose between 9 types of zone connection schemes
✔ 4 PGM outputs, independently programmable in different operational modes
✔ 8 completely independent partitions
✔ Access control with proximity reader
✔ 9 connection schemes for zone setup
✔ Ability to view history through the keypad, PC and CloudSG
✔ SMART diagnostics of the lead-acid battery state - information regarding capacity, load, charge, discharge and others
✔ SMART control and diagnostics showing the status of “AUX” bus power supply. Built-in protection against short circuit and automatic recovery. Full data feed showing current power consumption of peripheral devices.
Product video:
Description:
Smart Guard Panel has the ability to record and store every single event – up to 2000 events, with exact date and time of occurrence. By using simultaneously GSM, WiIFi and LAN communication, the data is transmitted to the monitoring, technical center and/or CloudSG. This increases the dependability of the system and guarantees that all events would be sent without data being manipulated or deleted. The system can be easily programmed both on site, through the keypad and/or PC, and remotely. All components from the system, including panel, keypads, proximity reader and expanders can be automatically and remotely configurated. Implemente is the SMART innovation AUTO ARM, enabling the system to automatically arm itself in accordance to a schedule or lack of activity. A further implementation – Smart Door Control, allows the system to control electromagnetic locks, without the need of additional power modules.
Technical Parameters:
- Power Supply:
18VAC ±10%, fuse 2A
- Backup Power Supply:
12V lead-acid battery
- System output (AUX):
13,8 VDC/1,6A
- System output (AUX):
13,8VDC/1,6A
- System bus:
RS485
- Operation temperature:
from - 0°С to +50°С
- Dimensions:
140mm x 74mm x 15mm
 |
SMART HOME |
|---|---|
|
SMART GUARD is a next generation alarm system, combining reliable security and “SMART HOME” automation, allowing the user to easily control different electric and electronic appliances and other external systems through different mobile devices. SMART GUARD has the ability to ARM according to previously set timebased schedules. Implemented Smart Door Control for further automation of electromagnetic locks, without additional power supply modules, reducing time and costs. This makes the SG one of the most innovative, dependable and secure alarm systems on the market!
|
 |
CLOUD PLATFORM |
|---|---|
|
SMART GUARD is easily manageable through all mobile platforms. For complete and reliable event monitoring, the system supports simultaneous communication through GSM, Wi-Fi and LAN networks. The built-in GSM communicator has the full functionality of the SMART DIALER with the ability to alert and notify about events via call and SMS to or from specified numbers. The module further provides the option to view event and alarm history from the keypad, PC, CLOUD SMART GUARD and other platforms and devices.
|
 |
DATA ENCRYPTION |
|---|---|
|
SMART GUARD has a built-in algorithm for additional high level code protection, ensuring communication encryption for remote access. In the event of an attempt to breach the system, we’ve engineered a highly intelligent software with automatic counteractive measures. By implementing two-way encryption and removing the option to delete events, the system guarantees advanced data security and integrity. It is impossible to manipulate or delete information, without it being sent to the monitoring centre.
|
 |
REMOTE SUPPORT |
|---|---|
|
SMART GUARD is a one of a kind system, supporting automatic and remote software updates over different devices such as the panel, keypads, proximity readers, expanders and others. In the event of connection loss, the software updates can resume from their last point of progress resulting in saving data and avoiding dangerous loops. Other than on site, through the keypads or/and PC, it is possible to remotely support and program the system and its components. The innovative SG PIR sensor allows the supporting teams to remotely view its current state, troubleshoot and modify the settings.
|
 |
 |
Downloads
Smart Guard Installation Manual
Smart Guard Declaration of conformity EN
