SMART GUARD WIFI/ETHERNET COMMUNICATION MODULE

ORDER NOW

BE SMART STAY SECURE WITH SMART GUARD!

Security and Smart Home ALL IN ONE

Next Generation PRO Intruder Alarm System

Complete access control at very high technological level

Lots of inovative functionality

You get ALL IN ONЕ

✔ Direct serial connection to the panel

✔ Remote programming and configuration of the entire system

✔ Quick and easy installation thanks to the HOT PLUG function (without having to shut down the system)

Purpose of Use:

Provides additional channels for data transfer via Ethernet and WiFi.Provides a high level of security. Encryption of communication with GPRS, Wi-Fi and LAN (ETHERNET). It can transmit simultaneous communication or be switched on sequentially.

Product video:

Description

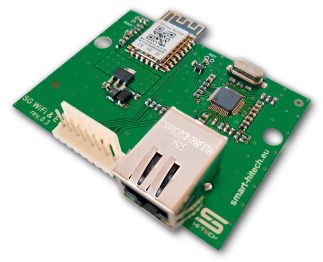

The latest generation WiFi/Ethernet Communication Module for embedding in Smart Guard alarm panels. Supports simultaneous transfer of events by basic, backup, technical (remote maintenance and system setup) and Cloud through WiFi и Ethernet channel. Designed for cloud technology connectivity (CLOUD SMART GUARD) and allowing remote system software updates. Built-in WiFi module for wireless connectivity. Built-in Ethernet module with RJ45 connector for connection. Possibility for parallel work with SG GSM for duplication of the connection through several channels mode.

Technical Parameters

Power Supply:

5VDC

Power Consumption:

min20mА, max80mA

Connection to alarm panel:

connected with a cable to the central panel

LAN:

10BaseT/100BaseTX Ethernet

WiFi:

802.11b/g/n÷2,41 GHz

Weight:

90 g

Operational Temperature:

-40˚C ÷ +85˚C

Dimensions:

74mm х 64mm х 28mm

Purpose of Use

	SMART HOME
SMART GUARD is a next generation alarm system, combining reliable security and “SMART HOME” automation, allowing the user to easily control different electric and electronic appliances and other external systems through different mobile devices. SMART GUARD has the ability to ARM according to previously set timebased schedules. Implemented Smart Door Control for further automation of electromagnetic locks, without additional power supply modules, reducing time and costs. This makes the SG one of the most innovative, dependable and secure alarm systems on the market!

SMART HOME

SMART GUARD is a next generation alarm system, combining reliable security and “SMART HOME” automation, allowing the user to easily control different electric and electronic appliances and other external systems through different mobile devices. SMART GUARD has the ability to ARM according to previously set timebased schedules. Implemented Smart Door Control for further automation of electromagnetic locks, without additional power supply modules, reducing time and costs. This makes the SG one of the most innovative, dependable and secure alarm systems on the market!

	CLOUD PLATFORM
SMART GUARD is easily manageable through all mobile platforms. For complete and reliable event monitoring, the system supports simultaneous communication through GSM, Wi-Fi and LAN networks. The built-in GSM communicator has the full functionality of the SMART DIALER with the ability to alert and notify about events via call and SMS to or from specified numbers. The module further provides the option to view event and alarm history from the keypad, PC, CLOUD SMART GUARD and other platforms and devices.

CLOUD PLATFORM

SMART GUARD is easily manageable through all mobile platforms. For complete and reliable event monitoring, the system supports simultaneous communication through GSM, Wi-Fi and LAN networks. The built-in GSM communicator has the full functionality of the SMART DIALER with the ability to alert and notify about events via call and SMS to or from specified numbers. The module further provides the option to view event and alarm history from the keypad, PC, CLOUD SMART GUARD and other platforms and devices.

	DATA ENCRYPTION
SMART GUARD has a built-in algorithm for additional high level code protection, ensuring communication encryption for remote access. In the event of an attempt to breach the system, we’ve engineered a highly intelligent software with automatic counteractive measures. By implementing two-way encryption and removing the option to delete events, the system guarantees advanced data security and integrity. It is impossible to manipulate or delete information, without it being sent to the monitoring centre.

DATA ENCRYPTION

SMART GUARD has a built-in algorithm for additional high level code protection, ensuring communication encryption for remote access. In the event of an attempt to breach the system, we’ve engineered a highly intelligent software with automatic counteractive measures. By implementing two-way encryption and removing the option to delete events, the system guarantees advanced data security and integrity. It is impossible to manipulate or delete information, without it being sent to the monitoring centre.

	REMOTE SUPPORT
SMART GUARD is a one of a kind system, supporting automatic and remote software updates over different devices such as the panel, keypads, proximity readers, expanders and others. In the event of connection loss, the software updates can resume from their last point of progress resulting in saving data and avoiding dangerous loops. Other than on site, through the keypads or/and PC, it is possible to remotely support and program the system and its components. The innovative SG PIR sensor allows the supporting teams to remotely view its current state, troubleshoot and modify the settings.

REMOTE SUPPORT

SMART GUARD is a one of a kind system, supporting automatic and remote software updates over different devices such as the panel, keypads, proximity readers, expanders and others. In the event of connection loss, the software updates can resume from their last point of progress resulting in saving data and avoiding dangerous loops. Other than on site, through the keypads or/and PC, it is possible to remotely support and program the system and its components. The innovative SG PIR sensor allows the supporting teams to remotely view its current state, troubleshoot and modify the settings.
